Garden Arch with Vertical Side Panels

Model BT1006C

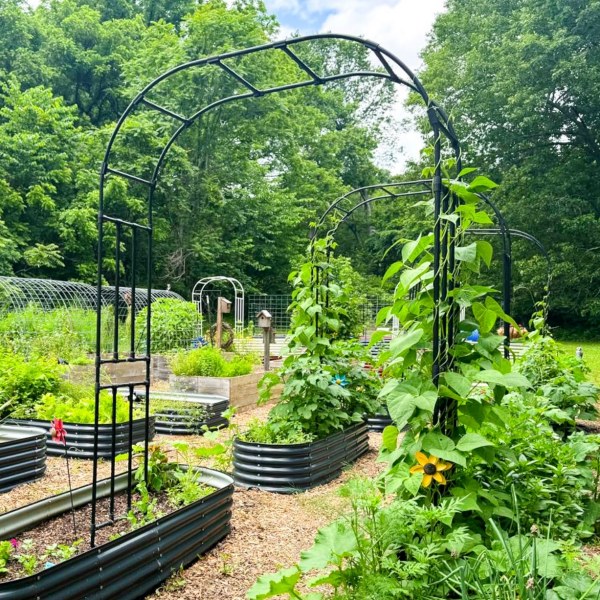

Straight vertical bars divide both side panels into separate tying points. Vegetable vines or rose stems can be secured to individual bars as they grow beside a raised-bed walkway, keeping the centre open for access and harvesting.

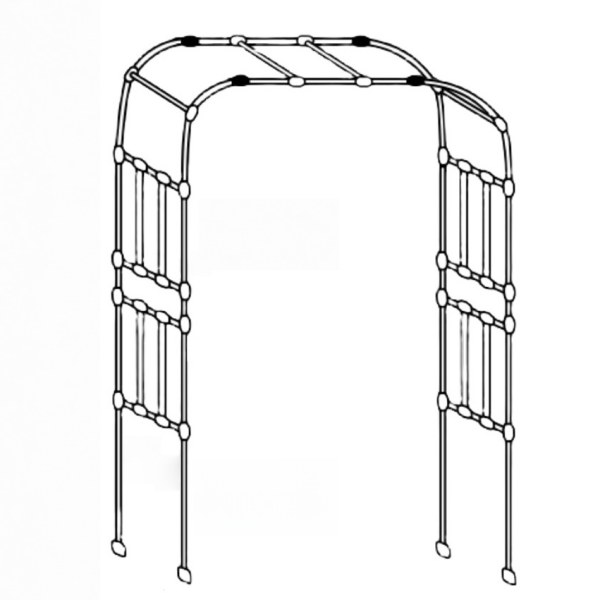

Vertical bars separate stems along each side panel
20 mm PE-coated galvanized steel tube
Eight installed widths from 120 to 320 cm
240 cm high with 40 cm-deep rectangular sides

Suitable for

Raised-bed walkwaysClimbing vegetablesEntrances planted on both sides

Specifications

Use the clear walkway as the width measurement. Keep enough working space beside the 40 cm panels to tie, prune and harvest plants from the side.

Installed Size (W × D × H, cm)	Packing Size (cm)	G.W. (kg)	N.W. (kg)
120 × 40 × 240	114 × 43.5 × 13.5	6.9	5.5
150 × 40 × 240	114 × 43.5 × 13.5	7.36	6.15
180 × 40 × 240	114 × 43.5 × 13.5	8.24	6.56
200 × 40 × 240	114 × 43.5 × 13.5	8.66	7.45
250 × 40 × 240	114 × 43.5 × 13.5	9.24	8.36
280 × 40 × 240	114 × 43.5 × 13.5	9.96	9.08
300 × 40 × 240	114 × 43.5 × 13.5	10.42	9.54
320 × 40 × 240	114 × 43.5 × 13.5	10.88	10
